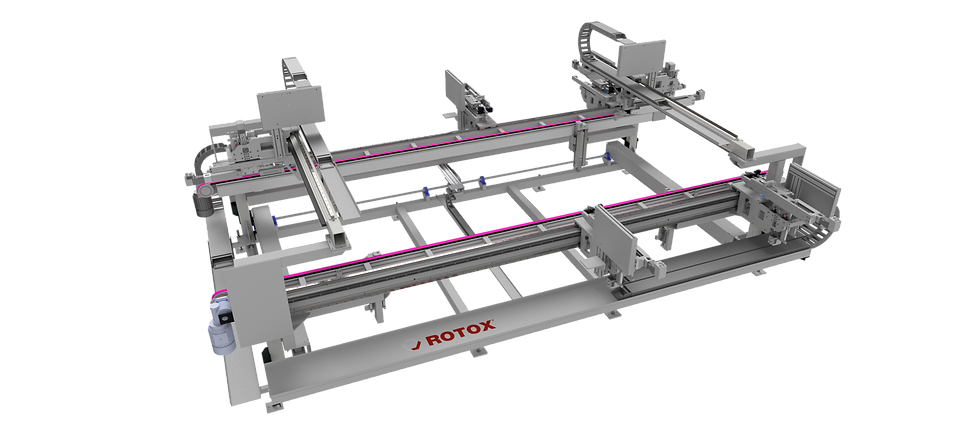

FB-SA 400/P4-P6

Four-sided screw machine

Advantages

For screwing previously inserted sash fittings without scissors to the 4 sash pieces at the same time
With portal construction for the screw units
Automatic positioning and transport device via 2-strand flat belt conveyor
4 (P4) or 6 (P6) screw feed units motorized via NC axes
Automatic screw feeder for one screw type
Adjustable real-time torque monitoring
PC control (usually mounted on the wing assembly table), including data reception for screw processing
Up to 20 programs for the sash and casement profiles incl.
Corner band screwing only in longitudinal direction
Screw size diameter 3.5 - 4.0, length max. 38 mm
