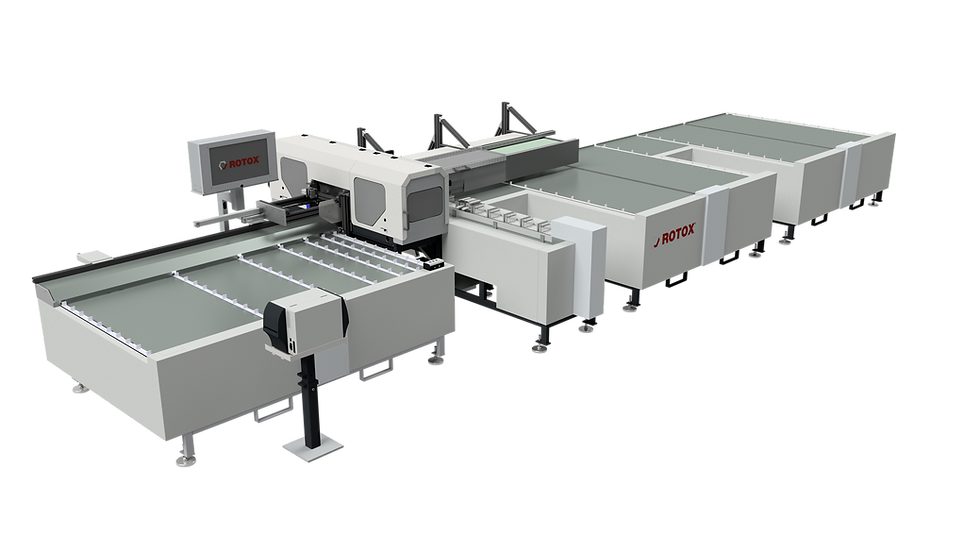

GZS 399
Glazing Bead Sawing Center
Advantages
- User-friendly PC control with optimization program and selectable residual management
- Universal bar tension for all glass beads with the same holding base
- Motorized adjustment to adapt to different glazing bead widths
- Corrections related to profile and/or cutting lengths can be adjusted
- Adjustable pneumatic saw blade feed
- Saw blade arrangement from above, so the cut pieces and chips fall freely downwards
- Storage magazine for 10 (optional 20) x 2 glazing beads
- Feed unit with servo motor and magnetic belt
- Feeding and pairwise cutting of 2 glass strips at the same time
- Pneumatic removal to the removal magazine with 10 (optional 20) x 2 glass strips
