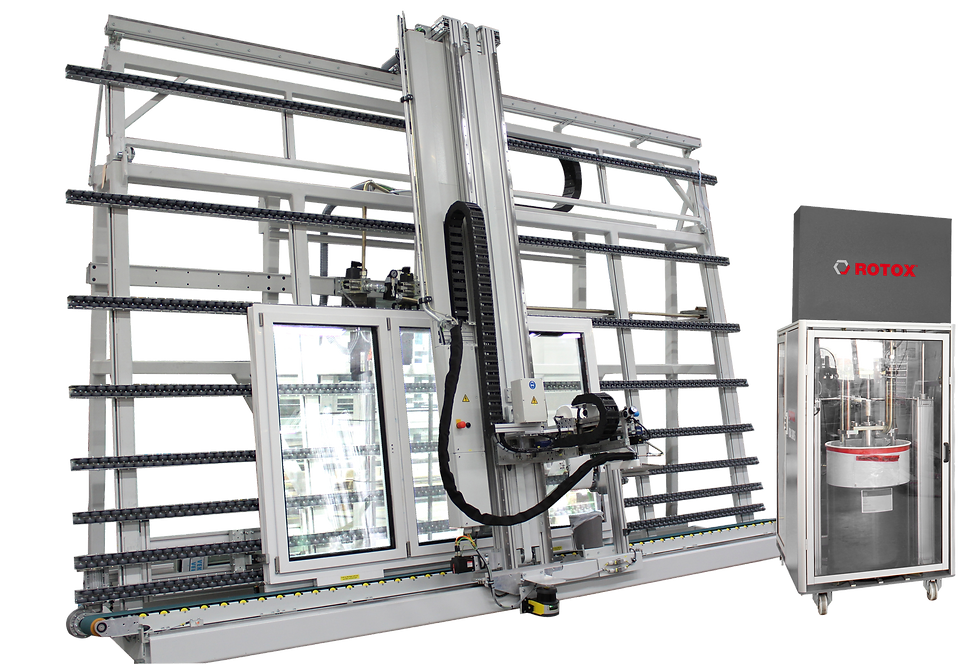

GKA 242
Glass Gluing Machine
Advantages
- PC control with screen
- Servo-driven dosing unit including gear pump for regulating the application quantity
- Variable mixing of two-component adhesive in a ratio of 100 : 50 to 100 : 10
- Volume measuring cell for permanent monitoring of the desired mixing ratio and reduction of setup and control times
- Pressure monitoring to ensure process safety
- Operational data recording for permanent quality assurance and CE-compliant documentation, e.g. of: Registered employee, date, time, barrel or batch number, mixing ratio, application quantity, application duration
- Separate level monitoring for scheduling the next adhesive drums (optional)
- Automatic mixer flushing position, butterfly test position, shear test position
- Manual roller conveyor or automatically driven belt (optional)
- Glue nozzle made of pure non-stick material (PTFE) or non-stick coated material with customer-specific nozzle geometries, injection angles and nozzle openings for an optimal adhesive bead result with minimal cleaning effort and optimized adhesive consumption
- Complete adhesive nozzle line with all components that come into contact with the adhesive after the static mixer made of pure non-stick material (PTFE) or non-stick coated material for an optimal cleaning process and working pressure
- Motor-driven guide device for the rotating glue gun
- Automatic application of the adhesive even without connection to an AV system (on request)
- Individual application of the adhesive quantity required according to the processing guidelines depending on the sash size, rod position in the element, glass thickness and glass size or gap size
- Permanent monitoring of the feed rate for maximum process reliability
