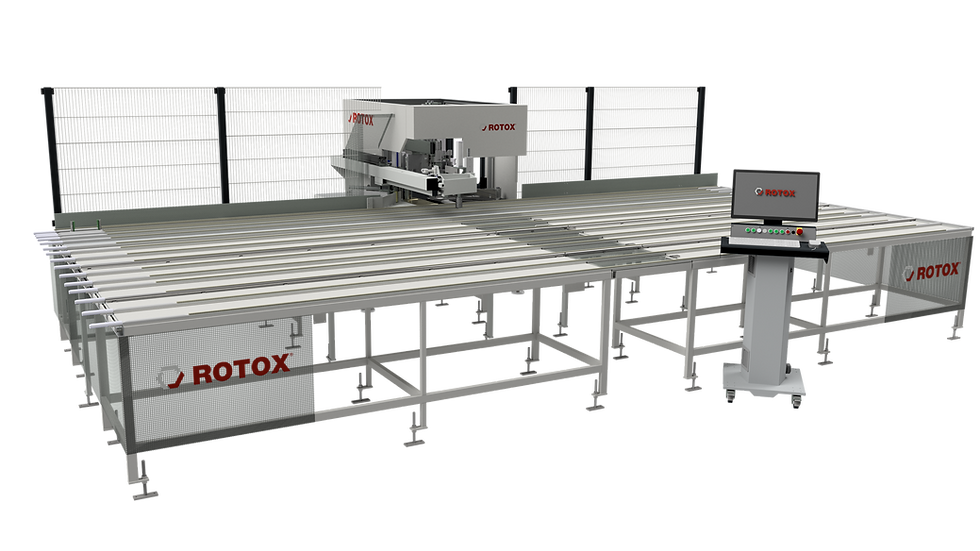

EPA 472

Corner cleaning machine

Advantages

Variable tooling with up to 12 tool positions + contour milling disc
Pneumatic tool clamping
Manual and/or turning table operation
Linking with multi-head welding machine
Interpolating 2-axis CNC control with integrated PLC
Memory for up to 300 NC programs
Easy creation of programs for new profile contours by copying and modifying
Automatic profile recognition or data transfer from a welding machine
High machining quality thanks to spring-loaded knife units with profile tolerance compensation in the inner corner area
Low-maintenance precision guides with central lubrication system and recirculating ball screws
Screen visualization based on Windows PC
Setting correction parameters using CAD profile drawings
Low corner frame cycle times
Fully automatic cleaning of visible surfaces, external corners, sealing grooves/areas, internal corners on PVC window frames and sashes, including radii, curves and bevels
